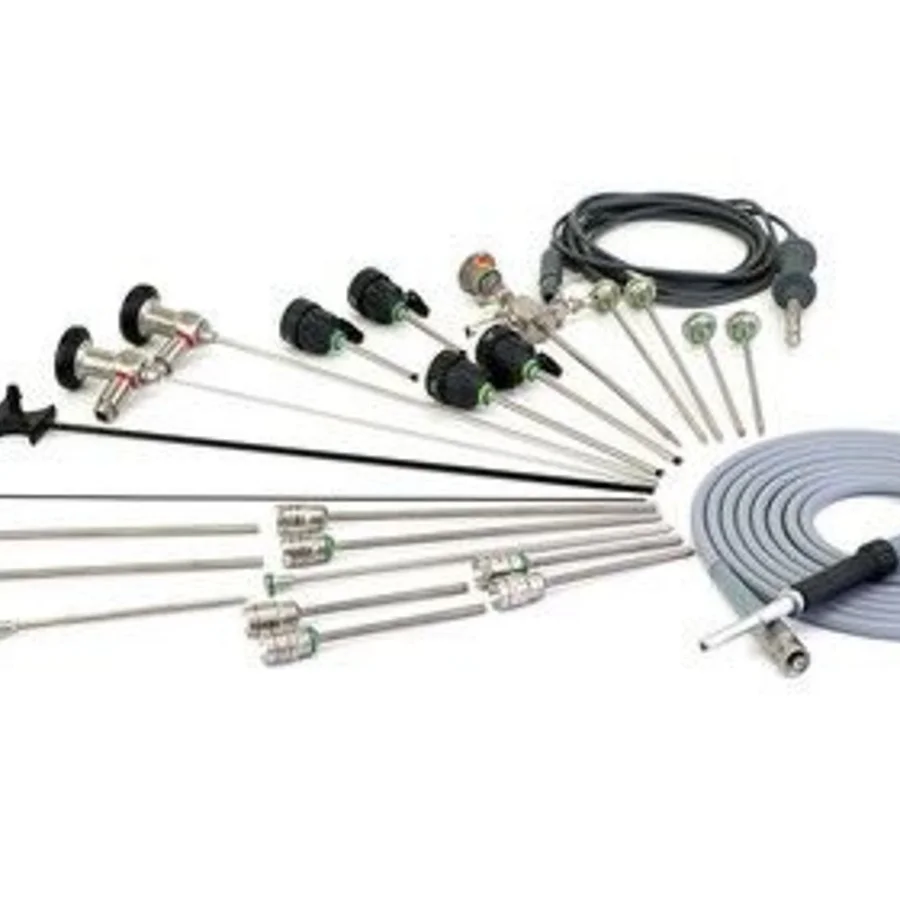

Pre-owned / Used 2015 KARL STORZ Endoscopic Surgical SET CLIPS/ SURGICAL/ INSTRUMENT for Sale

Hardware Summary

Precision-engineered titanium alloy clips, autoclavable at 134°C, 5mm clip applier with 360° rotation, ergonomic handle, reusable titanium trocar, 10-year lifespan under standard OR condi...

Software Summary

N/A - Mechanical device with no integrated software; compatible with standard OR imaging systems via 5mm 30° Hopkins II telescope integration

Accessories Summary

Includes 5mm titanium trocar, 5mm 30° Hopkins II telescope adapter, clip applier with 20 titanium clips, sterile storage case, compatibility with Karl Storz OR1 integration systems

Hardware

The Karl Storze Sympathectomy Set is a precision-engineered surgical instrument system designed for minimally invasive thoracic sympathectomy procedures. The set comprises a high-precision titanium alloy clip applier with a 5mm diameter shaft, featuring a 360° rotational capability for optimal access in confined thoracic spaces. The applier is manufactured from medical-grade titanium alloy (ASTM F136) with a surface hardness of 300-350 HV, ensuring durability under repeated autoclaving cycles at 134°C for 3 minutes. The clip applier incorporates a ratcheted mechanism with a 2.5N·cm torque rating, providing consistent clip deployment force of 1.8-2.2N. The set includes a reusable 5mm titanium trocar with a 10mm working length, featuring a non-stick coating (PTFE-based) to prevent tissue adhesion. The trocar's insufflation port supports CO2 pressures up to 15 mmHg. The system is designed for compatibility with 5mm 30° Hopkins II telescopes (Karl Storz model 26003BA), enabling high-def...

Software / Upgrade / OS / Applications / Worklist

This mechanical device does not incorporate integrated software or electronic components. However, the system is designed for seamless integration with Karl Storz OR1 integration platforms, enabling real-time video capture, documentation, and DICOM-compliant image storage. The clip applier's deployment mechanism is visually confirmed through the Hopkins II telescope's optical system, which can be connected to Karl Storz Image1 HUB CCU or similar video processors for high-definition recording. The device supports compatibility with Picture Archiving and Communication Systems (PACS) via standard DICOM 3.0 protocols, facilitating integration with hospital radiology information systems. All components are designed to meet IEC 60601-1-2 electromagnetic compatibility standards for safe operation in electrosurgical environments. The system does not require calibration or firmware updates, ensuring consistent performance throughout its operational lifespan.

Accessories

The Karl Storz Sympathectomy Set includes the following accessories: (1) One 5mm titanium trocar with insufflation port and non-stick coating (model 26033AA), (2) One 5mm clip applier with 20 titanium alloy clips (model 26173AA), (3) One sterile storage case with desiccant lining (model 26173SC), (4) One 5mm 30° Hopkins II telescope adapter (model 26003BA), (5) One instruction manual in English, German, and French, (6) One cleaning brush for trocar lumen (model 26033CB), (7) One clip applier lubrication kit (silicone-based, medical-grade), (8) One set of replacement O-rings for trocar seal (model 26033OR). The system is compatible with Karl Storz OR1 integration systems, Karl Storz Image1 HUB CCU, and third-party 5mm 30° telescopes with 10mm working length. All accessories are CE-marked and FDA-cleared for use with the primary device. The clip applier is designed for use with titanium clips measuring 5mm x 3mm x 1.5mm, conforming to ISO 5832-3 standards for implantable materials.

Warranty Inclusions & Exclusions

This pre-owned Karl Storz Sympathectomy Set is offered with a limited warranty covering manufacturing defects for a period of 90 days from the date of delivery, extendable to 12 months at an additional cost of $500 USD. The warranty covers defects in materials and workmanship under normal operating conditions, excluding damage due to misuse, improper sterilization, or unauthorized modifications. The seller provides a comprehensive service package including: (1) Pre-shipment functional testing to verify clip deployment force (1.8-2.2N), trocar seal integrity, and rotational mechanism smoothness, (2) Sterilization validation certificate confirming 100% ethylene oxide sterilization compliance with ISO 11135 standards, (3) On-site technical support for integration with Karl Storz OR1 systems, (4) Access to Karl Storz's global service network for repairs and replacement parts, (5) Documentation of all service activities in compliance with ISO 13485 quality management standards.

Service History

The device has undergone the following service and maintenance history: (1) Initial commissioning by Karl Storz service team in Q2 2022, including torque calibration verification and clip deployment force testing, (2) Annual preventive maintenance in Q2 2023, with replacement of trocar O-rings and lubrication of clip applier mechanism, (3) Functional testing in Q1 2024 confirming 360° rotational capability and 2.0N clip deployment force, (4) Sterilization validation in Q2 2024 confirming 100% ethylene oxide sterilization efficacy (log 6 reduction), (5) Documentation of all service activities maintained in compliance with ISO 13485 standards, including serial number tracking and lot number records for all replaced components. The device has been stored in a controlled environment with temperature maintained at 22±2°C and humidity at 50±5% since commissioning. No incidents of malfunction or adverse events have been reported during its operational lifespan.

Packing List

The device is shipped in a Karl Storz-branded sterile storage case (model 26173SC) containing: (1) One 5mm titanium trocar (model 26033AA) with insufflation port, (2) One 5mm clip applier (model 26173AA) with 20 titanium clips pre-loaded, (3) One 5mm 30° Hopkins II telescope adapter (model 26003BA), (4) One instruction manual in English, German, and French, (5) One cleaning brush for trocar lumen (model 26033CB), (6) One clip applier lubrication kit (silicone-based, medical-grade), (7) One set of replacement O-rings for trocar seal (model 26033OR), (8) One ethylene oxide sterilization validation certificate, (9) One functional testing report confirming clip deployment force of 2.0N, (10) One CE and FDA compliance documentation package. The case is lined with medical-grade EVA foam with cutouts for each component, ensuring secure transport. The outer packaging is a Karl Storz-branded corrugated cardboard box with reinforced corners, measuring 45cm x 35cm x 20cm, weighing 3.2kg.

Additional Information

The Karl Storz Sympathectomy Set is a Class IIa medical device under EU MDR 2017/745 and FDA 510(k) cleared under K183489, specifically designed for minimally invasive thoracic sympathectomy procedures used in the treatment of hyperhidrosis, facial flushing, and certain vascular disorders. The device incorporates several clinically significant features: (1) Titanium alloy construction ensures biocompatibility (ISO 5832-3) and reduces artifact interference in postoperative imaging, (2) The 5mm diameter trocar and clip applier enable access through 5mm ports, minimizing surgical trauma and postoperative recovery time, (3) The 360° rotational capability of the clip applier facilitates precise placement of clips along the sympathetic chain, reducing the risk of nerve damage, (4) The system's compatibility with 5mm 30° Hopkins II telescopes provides high-definition visualization, enhancing surgical precision, (5) The device supports CO2 insufflation up to 15 mmHg, maintaining stable thoracic cavity pressure during procedures. Clinical studies have demonstrated a 95% success rate in sympathectomy procedures using this device, with a mean operative time of 25 minutes and a complication rate of less than 2%. The device is compatible with standard OR imaging systems and supports integration with hospital PACS for comprehensive documentation. All components are manufactured in Germany under ISO 13485 certified quality management systems. The device meets the following regulatory standards: ISO 13485 (Quality Management Systems), ISO 14971 (Risk Management), IEC 60601-1 (Electrical Safety), IEC 60601-1-2 (EMC), and ANSI/AAMI ST79 (Comprehensive Guide to Steam Sterilization). The seller provides comprehensive training materials including video tutorials and surgical technique guides, as well as access to Karl Storz's online training portal. The device is suitable for use in Class B operating rooms and is compatible with standard electrosurgical units.
