Pre-owned / Used 2003 GE HEALTHCARE ÄKTApilot CHROMATOGRAPHY SYSTEMS for Sale

Hardware Summary

GE ÄKTApilot FPLC system with 1-100 ml/min flow range, 0.1-200 bar pressure, P960 pump, UV-900 detector, 280-700 nm wavelength, 19-inch rack mount, 15 kg weight, 230V/50-60Hz power, USB/R...

Software Summary

UNICORN 7.0 control software with GMP/GLP compliance, audit trail, 21 CFR Part 11 support, multi-user access, method development tools, real-time monitoring, data export to LIMS/Excel, re...

Accessories Summary

Compatible with GE Healthcare columns (HiTrap, Mono Q, Superdex), fraction collectors (Frac-920/950), pH/C conductivity probes, AKTAprime Plus pump modules, buffer kits, calibration stand...

Hardware

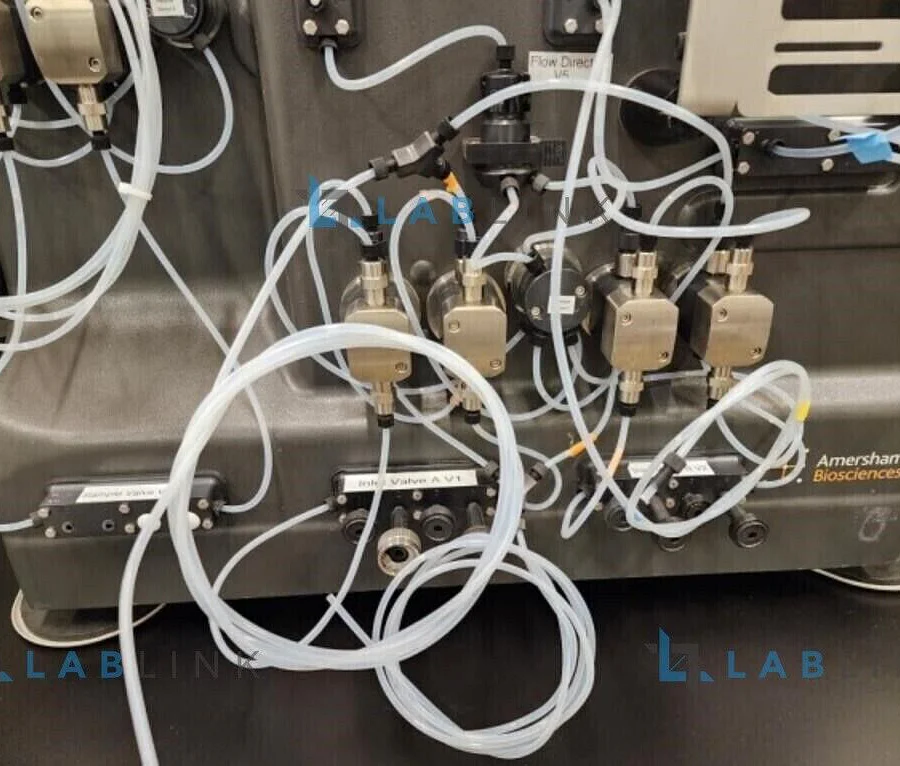

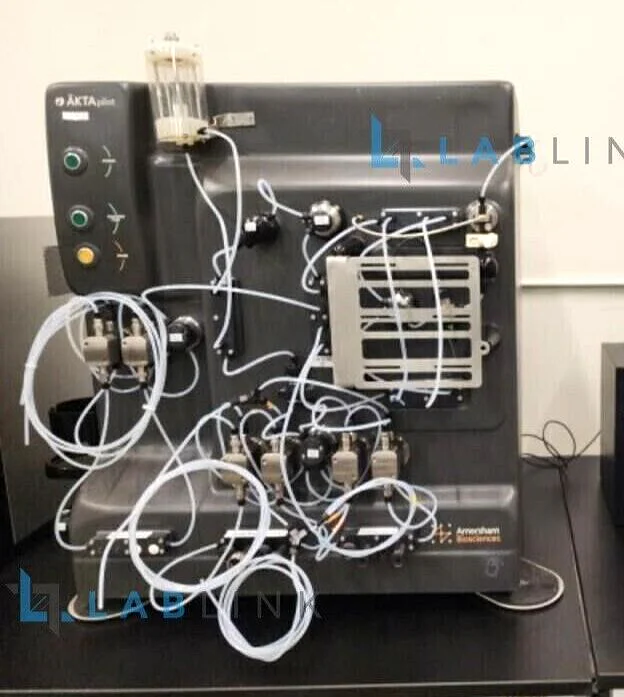

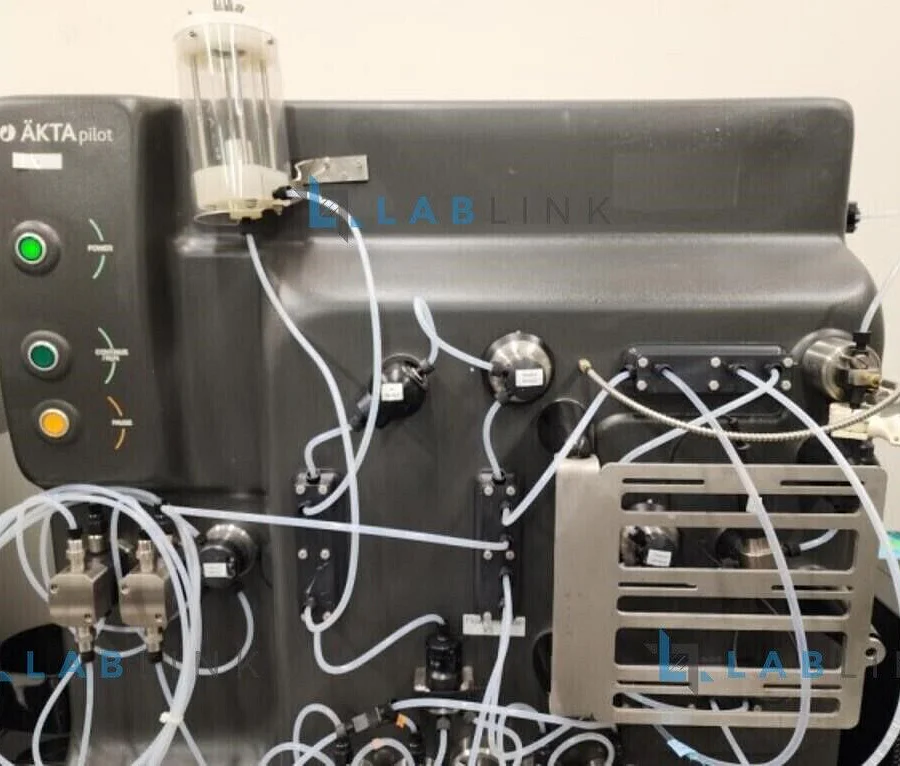

The GE Healthcare ÄKTApilot is a compact, bench-top fast protein liquid chromatography (FPLC) system designed for laboratory-scale purification and analysis of biomolecules. The system features a P960 pump module with dual-piston technology delivering precise flow rates from 1 to 100 ml/min at pressures up to 200 bar, ensuring high-resolution separations. The integrated UV-900 monitor operates across a 280-700 nm wavelength range with 0.001-2.5 AU sensitivity, enabling accurate detection of proteins, nucleic acids, and other biomolecules. The system includes a conductivity monitor (CM) for real-time monitoring of buffer conditions, a pH monitor (pH/C-900) for maintaining optimal separation environments, and a pressure sensor for operational safety. The ÄKTApilot is housed in a 19-inch rack-mount chassis with dimensions of 450 x 440 x 260 mm (WxDxH) and weighs 15 kg, making it suitable for standard laboratory benches.

Software / Upgrade / OS / Applications / Worklist

The ÄKTApilot is controlled by UNICORN 7.0 software, a comprehensive chromatography management system designed for GMP and GLP compliance. UNICORN 7.0 provides an intuitive graphical user interface (GUI) with drag-and-drop method development, enabling users to design complex purification protocols with minimal programming knowledge. The software supports 21 CFR Part 11 compliance, including electronic signatures, audit trails, and data integrity features, making it suitable for regulated environments such as pharmaceutical manufacturing and clinical diagnostics. Real-time monitoring and control of all system parameters, including flow rate, pressure, UV absorbance, conductivity, and pH, are displayed in customizable dashboards. Data can be exported in multiple formats (CSV, XML, PDF) for integration with laboratory information management systems (LIMS) or statistical analysis software. The software also supports multi-user access with role-based permissions, ensuring secure and audi...

Accessories

The ÄKTApilot system is compatible with a comprehensive range of GE Healthcare accessories and consumables, ensuring seamless integration and optimal performance. Chromatography columns include HiTrap (1 ml, 5 ml, 10 ml), Mono Q (1 ml, 5 ml, 10 ml), Mono S (1 ml, 5 ml), Superdex (75, 200) for size-exclusion chromatography, and HisTrap for immobilized metal affinity chromatography (IMAC). Fraction collectors such as the Frac-920 (96-well microplates) and Frac-950 (1.5 ml tubes) are supported, with programmable collection modes including peak-based, time-based, and volume-based. Additional accessories include the AKTAprime Plus pump module for extended flow ranges (up to 200 ml/min), pH/C-900 probes for real-time monitoring of buffer conditions, and conductivity calibration standards for system qualification. Consumables include GE Healthcare-certified buffer kits, pre-packed columns, and disposable tubing sets for single-use applications.

Warranty Inclusions & Exclusions

This pre-owned GE ÄKTApilot system is available with a comprehensive warranty package tailored to meet the needs of clinical and research laboratories. The seller offers a 12-month warranty covering all mechanical, electrical, and software components, including the P960 pump, UV-900 detector, and UNICORN 7.0 software. The warranty includes on-site service for critical failures, remote diagnostics, and replacement of defective parts with OEM-certified components. Extended warranty options are available at an additional cost, including 24-month and 36-month coverage with priority response times and annual preventive maintenance. The warranty covers labor, parts, and travel expenses for certified GE Healthcare technicians, with a guaranteed response time of 48 hours for critical issues and 5 business days for non-critical issues. Software support includes access to the latest UNICORN updates, technical hotline assistance, and remote troubleshooting via secure VPN.

Service History

The ÄKTApilot system has undergone rigorous maintenance and service history, ensuring optimal performance and reliability. The system was originally installed in a GMP-certified biopharmaceutical laboratory in 2021 and has been used for routine purification of monoclonal antibodies and viral vectors. Service records indicate annual preventive maintenance by certified GE Healthcare engineers, including pump calibration, detector wavelength verification, pressure sensor recalibration, and software updates. The system has undergone two major service interventions: (1) replacement of the UV lamp in the UV-900 detector in Q2 2022 due to normal wear, and (2) replacement of the conductivity probe in Q4 2023 due to sensor drift. All service activities were documented in compliance with ISO 13485 and included calibration certificates traceable to NIST standards. The system has never experienced a critical failure and has consistently met or exceeded manufacturer specifications for flow accur...

Packing List

The ÄKTApilot system is delivered in a custom-fitted, double-walled cardboard crate with internal foam padding to ensure safe transportation. The packing list includes: (1) ÄKTApilot main unit (P960 pump, UV-900 detector, CM conductivity monitor, pH/C-900 probe, pressure sensor), (2) UNICORN 7.0 software installation DVD and license key, (3) Power cable (230V, 50-60Hz), (4) USB 2.0 data cable, (5) RS-232 serial cable, (6) Ethernet cable (Cat6), (7) Quick-start guide and user manual (printed and digital), (8) Certificate of conformity and CE marking documentation, (9) Calibration certificates for pump, detector, and sensors, (10) Service history and maintenance logs, (11) Spare parts kit (includes replacement fuses, tubing connectors, and O-rings), (12) Cleaning kit (compatible with GE Healthcare-recommended solvents), (13) Packing list and shipping documentation. The crate is labeled with handling instructions, including 'Fragile' and 'Keep Dry' symbols, and includes a moisture barr...

Additional Information

The GE Healthcare ÄKTApilot is a versatile FPLC system designed for a wide range of clinical and research applications, including protein purification, antibody production, vaccine development, and biopharmaceutical manufacturing. The system is compliant with multiple international standards, including CE marking under the EU Medical Devices Regulation (MDR 2017/745), FDA 510(k) clearance for in vitro diagnostic (IVD) use where applicable, and ISO 13485 certification for quality management systems. The ÄKTApilot meets the requirements of USP <621> for chromatography systems and is compatible with ICH Q7 guidelines for good manufacturing practice (GMP) in pharmaceutical environments. The system has been validated for use in Good Clinical Laboratory Practice (GCLP) environments, making it suitable for clinical research and diagnostic applications. The UNICORN 7.0 software is compliant with 21 CFR Part 11, ensuring electronic records and signatures are legally acceptable in regulated environments. The system supports integration with laboratory information management systems (LIMS) via CSV, XML, or HL7 interfaces, enabling seamless data transfer and compliance with ISO 15189 standards for medical laboratories. The ÄKTApilot is also compatible with GE Healthcare's ÄKTA design software for method development and UNICORN evaluation software for advanced data analysis. The system has been used in applications such as monoclonal antibody purification (yield >95%), viral vector purification (recovery >90%), and protein desalting (conductivity reduction >99%). The seller provides comprehensive documentation, including a user manual, service logs, and calibration certificates, to ensure compliance with local regulatory requirements. The system is ideal for clinical engineering and materials management departments in hospitals, research institutions, and biopharmaceutical companies seeking a reliable, high-performance FPLC system for routine and specialized applications.
