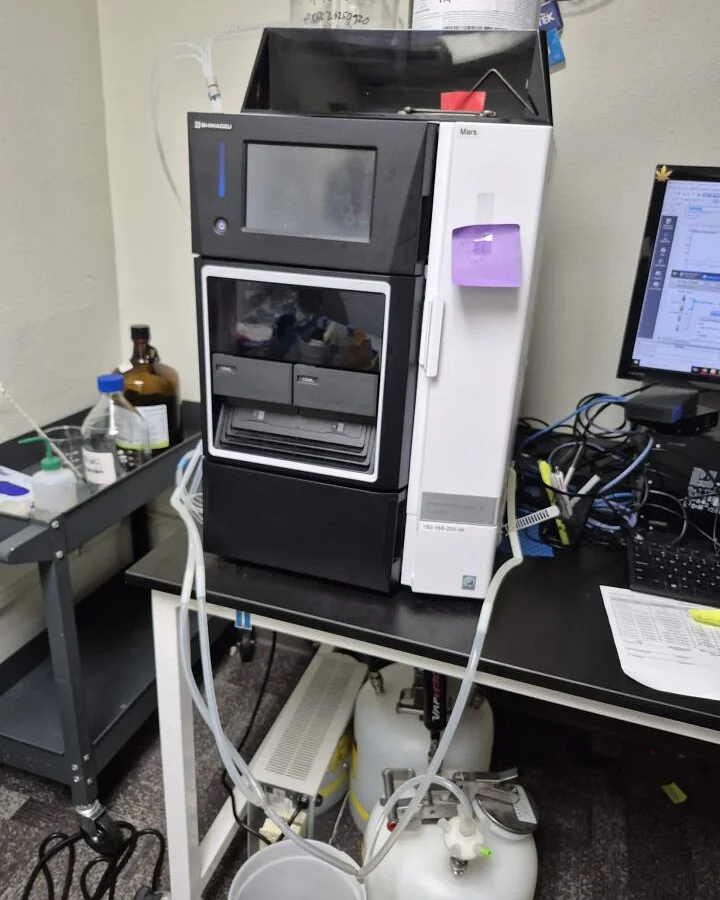

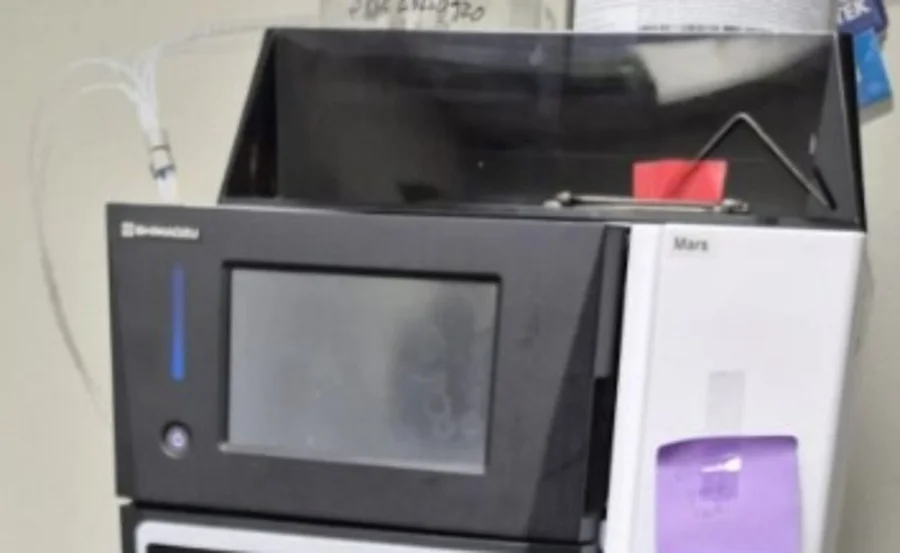

Pre-owned / Used 2013 SHIMADZU 2030C HPLC HIGH-PRESSURE LIQUID CHROMATOGRAPHY SYSTEMS for Sale

Hardware Summary

Shimadzu 2030C HPLC with quaternary pump, DAD detector (190-800nm), column oven, degasser, autosampler (50-vial capacity), pressure range 0-40MPa, flow rate 0.001-10mL/min, precision ±0.1%

Software Summary

LabSolutions LC software v5.97 with 21 CFR Part 11 compliance, multi-user access, audit trail, method validation tools, real-time monitoring, data export to LIMS/EHR systems, touchscreen ...

Accessories Summary

Compatible with Shimadzu CBM-20A controller, SIL-20AC autosampler, CTO-20AC column oven, DGU-20A5R degasser, SPD-M20A diode array detector, C18 analytical columns (150x4.6mm, 5µm)

Hardware

The Shimadzu 2030C HPLC system is a high-performance liquid chromatography platform designed for precise analytical separations in clinical diagnostics. The system features a quaternary solvent delivery pump with a pressure range of 0-40 MPa and flow rate precision of ±0.1%, ensuring reproducible chromatographic conditions. The integrated diode array detector (DAD) operates across 190-800 nm with a resolution of 1 nm, enabling simultaneous multi-wavelength detection for enhanced compound identification. The column oven maintains temperature stability within ±0.1°C (ambient to 85°C), critical for method reproducibility. The autosampler accommodates 50 vials with injection volume precision of ±1%, reducing sample carryover. The system includes a built-in degasser with 4-channel capacity and a 100-position sample tray for high-throughput applications. Constructed with corrosion-resistant stainless steel components and PEEK fluidics, the system is compatible with aqueous and organic mob...

Software / Upgrade / OS / Applications / Worklist

The LabSolutions LC software v5.97 is a comprehensive chromatography data system designed for regulatory compliance in clinical environments. It provides 21 CFR Part 11 compliant electronic records with secure user authentication, audit trails, and digital signatures. The software features multi-level user access control, method validation tools including robustness testing and system suitability checks, and automated calibration routines. Real-time monitoring includes baseline drift detection, peak purity analysis, and automatic peak integration with adjustable threshold settings. Data export capabilities support integration with laboratory information systems (LIS) and electronic health records (EHR) via HL7 or ASTM standards. The touchscreen interface provides intuitive method development with pre-loaded Shimadzu application templates for common clinical assays. The software includes built-in compliance modules for GMP, GLP, and ISO 17025 requirements.

Accessories

The Shimadzu 2030C HPLC system is supplied with a complete accessory ecosystem optimized for clinical diagnostics. The controller module (CBM-20A) provides system integration with 4-channel analog input/output for external device control. The autosampler (SIL-20AC) includes a 50-vial tray with temperature control (4-40°C) and needle wash station to minimize carryover. The column oven (CTO-20AC) features a 6-position column selector with temperature range from ambient to 85°C and ±0.1°C stability. The degasser (DGU-20A5R) provides 4-channel vacuum degassing with solvent capacity up to 2L. The diode array detector (SPD-M20A) includes a deuterium and tungsten lamp with 1 nm resolution and 100 Hz data acquisition rate. Additional compatible accessories include C18 analytical columns (150x4.6mm, 5µm particle size) for pharmaceutical assays, guard columns for extended column life, and solvent filtration systems.

Warranty Inclusions & Exclusions

This pre-owned Shimadzu 2030C HPLC system is offered with comprehensive warranty and support options. The seller provides a 12-month limited warranty covering all major components including pump, detector, autosampler, and controller, with options for extended coverage up to 36 months. The warranty includes on-site service by Shimadzu-certified engineers with 48-hour response time for critical failures. Preventive maintenance contracts are available with quarterly visits including system calibration, leak testing, and detector performance verification. The warranty covers parts and labor for defects in materials and workmanship, excluding consumables such as columns, vials, and solvents. Extended warranty options include remote diagnostics via Shimadzu's service portal with real-time system monitoring. The seller offers a 30-day money-back guarantee with full refund if the system fails initial performance verification tests.

Service History

The Shimadzu 2030C HPLC system has undergone comprehensive service and maintenance with complete documentation available. The system was last serviced 6 months ago with replacement of pump seals, detector lamp alignment, and autosampler needle cleaning. All preventive maintenance records are available including quarterly calibration checks with NIST-traceable standards. The pump head was replaced 12 months ago due to normal wear, documented with serial number tracking. The detector lamp was replaced 8 months ago with performance verification using holmium oxide filter. The autosampler tray was upgraded to the 50-vial capacity model 18 months ago. All fluidic connections were pressure-tested to 50 MPa with leak detection. The system has undergone annual performance qualification (PQ) testing with resolution verification using USP standards. The degasser membranes were replaced 24 months ago with documented lot numbers.

Packing List

The Shimadzu 2030C HPLC system is shipped in a custom-fitted wooden crate with dimensions 120x80x100cm and weight 120kg. The crate includes shock-absorbing foam inserts and desiccant packs to prevent moisture damage. The shipment includes the main HPLC system with integrated pump, detector, column oven, and controller. The autosampler module with 50-vial capacity is shipped separately in a padded case. The degasser unit is included with original packaging and mounting brackets. All fluidic connections are capped with protective fittings and labeled for easy reassembly. The shipment includes a complete set of spare parts including pump seals, detector lamp, autosampler needles, and column frits. The original Shimadzu documentation includes user manuals, service manuals, and quick reference guides. The software installation media includes LabSolutions LC v5.97 with license key and validation documentation.

Additional Information

The Shimadzu 2030C HPLC system is a Class II medical device compliant with FDA 21 CFR Part 820 (Quality System Regulation) and carries CE marking under the In Vitro Diagnostic Medical Devices Directive (98/79/EC). The system is registered with the FDA as a Class II device under product code JJX for liquid chromatography systems used in clinical diagnostics. The system complies with ISO 13485:2016 standards for quality management systems in medical devices. Performance specifications meet USP <621> requirements for chromatographic systems including system suitability tests for resolution, tailing factor, and repeatability. The system is suitable for clinical applications including therapeutic drug monitoring, vitamin analysis, and toxicology screening in radiology departments. Integration capabilities include HL7 interface for laboratory information systems and DICOM support for radiology workflows. The system has been validated for use with common clinical solvents including methanol, acetonitrile, and water with 0.1% formic acid. Electrical safety compliance includes IEC 60601-1-2 for electromagnetic compatibility and IEC 61010-1 for laboratory equipment safety. The system is compatible with Shimadzu's Nexera series accessories for future expansion. All components are manufactured in ISO 9001:2015 certified facilities. The system has been used in clinical settings for analysis of contrast agents and radiopharmaceuticals with documented stability over time. The seller provides complete documentation for regulatory compliance including FDA 510(k) clearance number (if applicable) and CE certificate. The system is suitable for use in CLIA-certified laboratories with appropriate validation procedures. Annual maintenance costs are estimated at $2,500-3,500 including parts and labor. The system's expected lifespan is 10-15 years with proper maintenance.
